Sale!

Colorful BATTLE-AX B450M-HD V14 Gaming Motherboard Mainboard Systemboard Multi-Protection AMD B450/Socket AM4 Processor SATA 3.0 6Gb/s USB 3.1 M.2

4,500.00

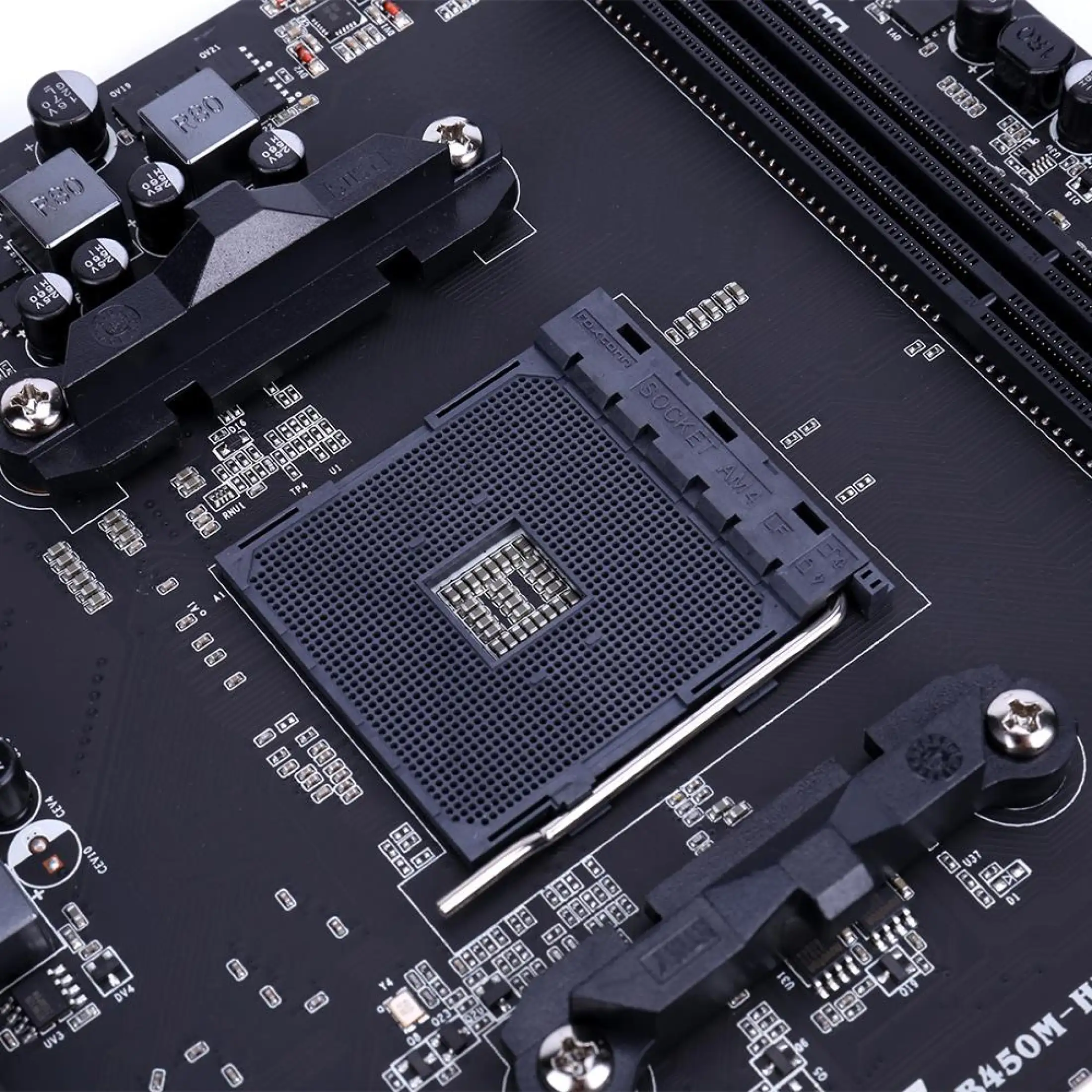

Supports AMD Socket AM4 and Ryzen Series CPUs
◆Supports Dual Channel DDR4 3200(OC)/3000(OC)/2800(OC)/2666/2400/2133MHz memory
◆4*SATA3.0 ports
◆RTL8111H 1000M LAN
◆Realtek ALC662 6-ch audio chipset
◆VGA+DVI+HDMI ports
◆6*USB2.0 ports(2 through header)
◆4*USB3.0 ports
◆2*USB3.1 ports(through header)
◆Audio isolated LED light
◆1*4PIN 12V RGB header

1 in stock

Compare

Share this product

Description

Product details of Colorful BATTLE-AX B450M-HD V14 Gaming Motherboard Mainboard Systemboard Multi-Protection AMD B450/Socket AM4 Processor SATA 3.0 6Gb/s USB 3.1 M.2

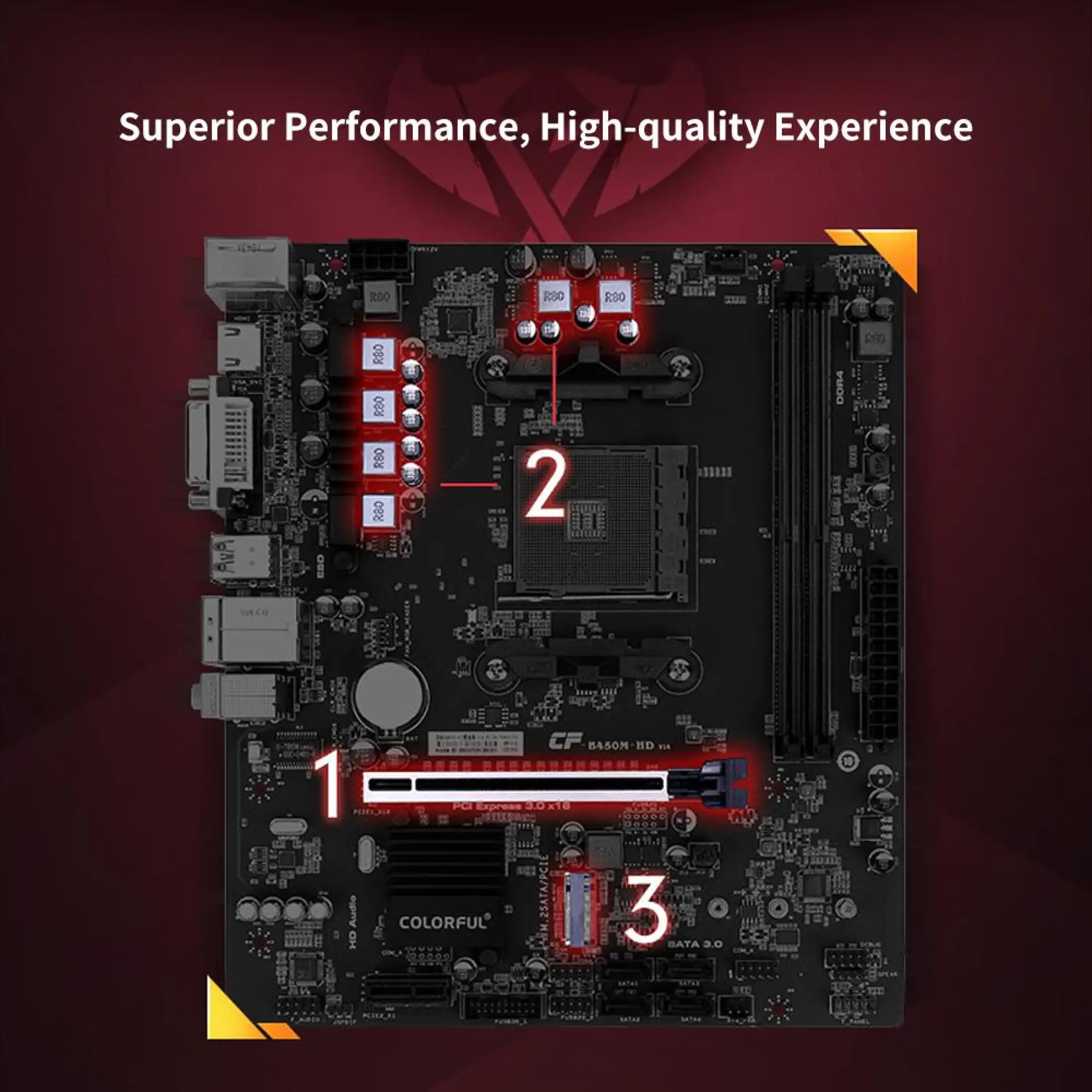

  • Metal Material. Made of high quality to ensure its stability, and provide more stable connection between the graphics card and motherboard, to prevent the slot damages caused by the graphics card’s overweight.
  • 6-Phase CPU Power Supply, 10K Solid-state Capacitor. 10K solid-state capacitor ensures the stability and durability of the motherboard.
  • High-Speed DDR4 Memory Slot. Supports up to 32GB, and supports DDR4 dual channel 2133, 2400, 2666, 2800 (OC), 3000(OC), 3200 (OC) MHZ memory.
  • Professional Audio HIFI Capacitor. Equips LED light strips to effectively isolate high-frequency signal noise interference on complex circuits on the motherboard.
  • 6X Protections. Features six protection technologies including overload protection, I/O OVP, anti-static, moisture-resistance, lightning protection, high temperature resistance, to ensure more stable running of the product and PCB atomization process has been upgraded













Features:

Metal Material.
Made of high quality to ensure its stability, and provide more stable connection between the graphics card and motherboard, to prevent the slot damages caused by the graphics card’s overweight.
6-Phase CPU Power Supply, 10K Solid-state Capacitor.
10K solid-state capacitor ensures the stability and durability of the motherboard.

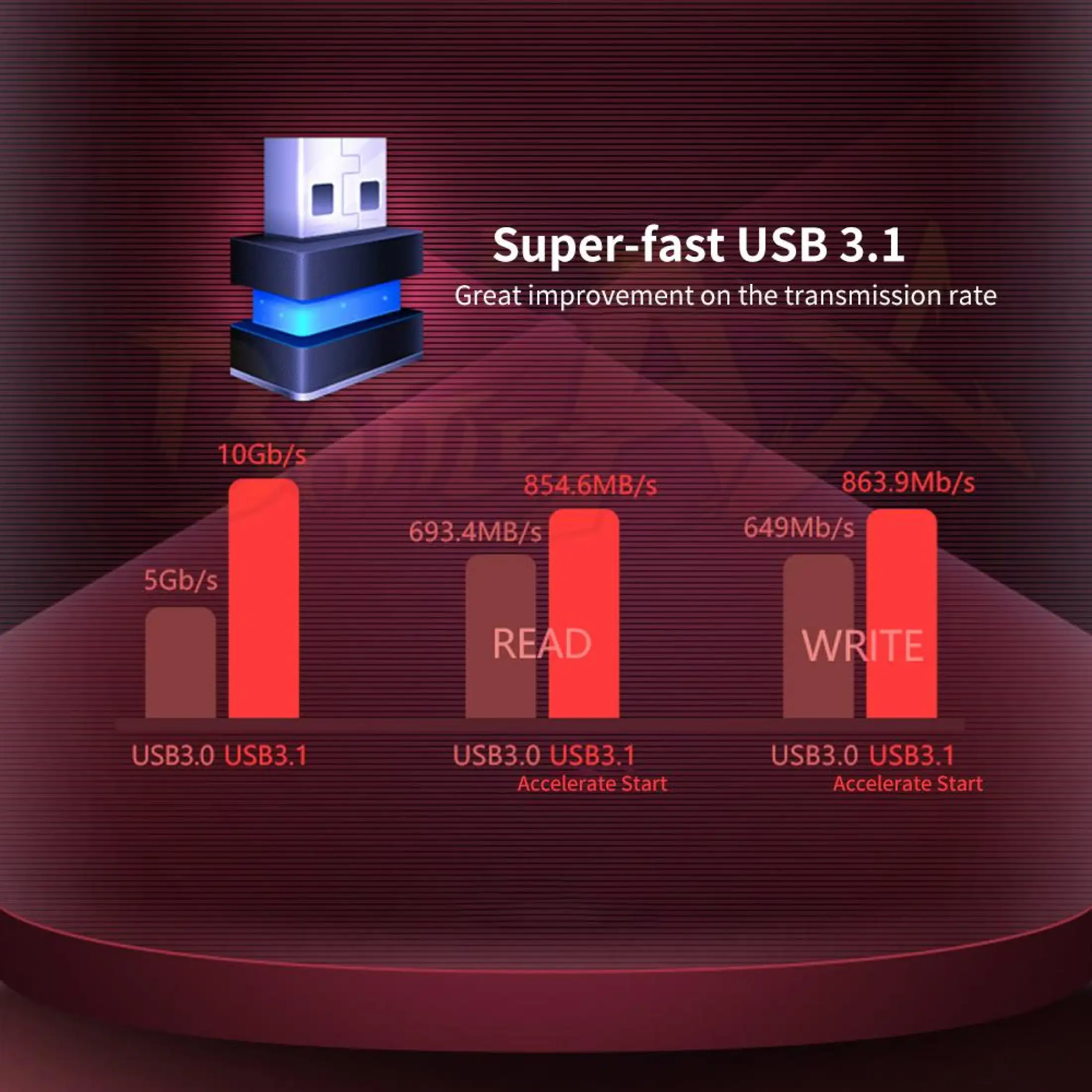

High-Speed M.2 Slot & Super-fast USB 3.1.
Supports SSD with NVMe solid state drive, to greatly improve the transmission rate.
High-Speed DDR4 Memory Slot.
Supports up to 32GB, and supports DDR4 dual channel 2133, 2400, 2666, 2800 (OC), 3000(OC), 3200 (OC) MHZ memory.

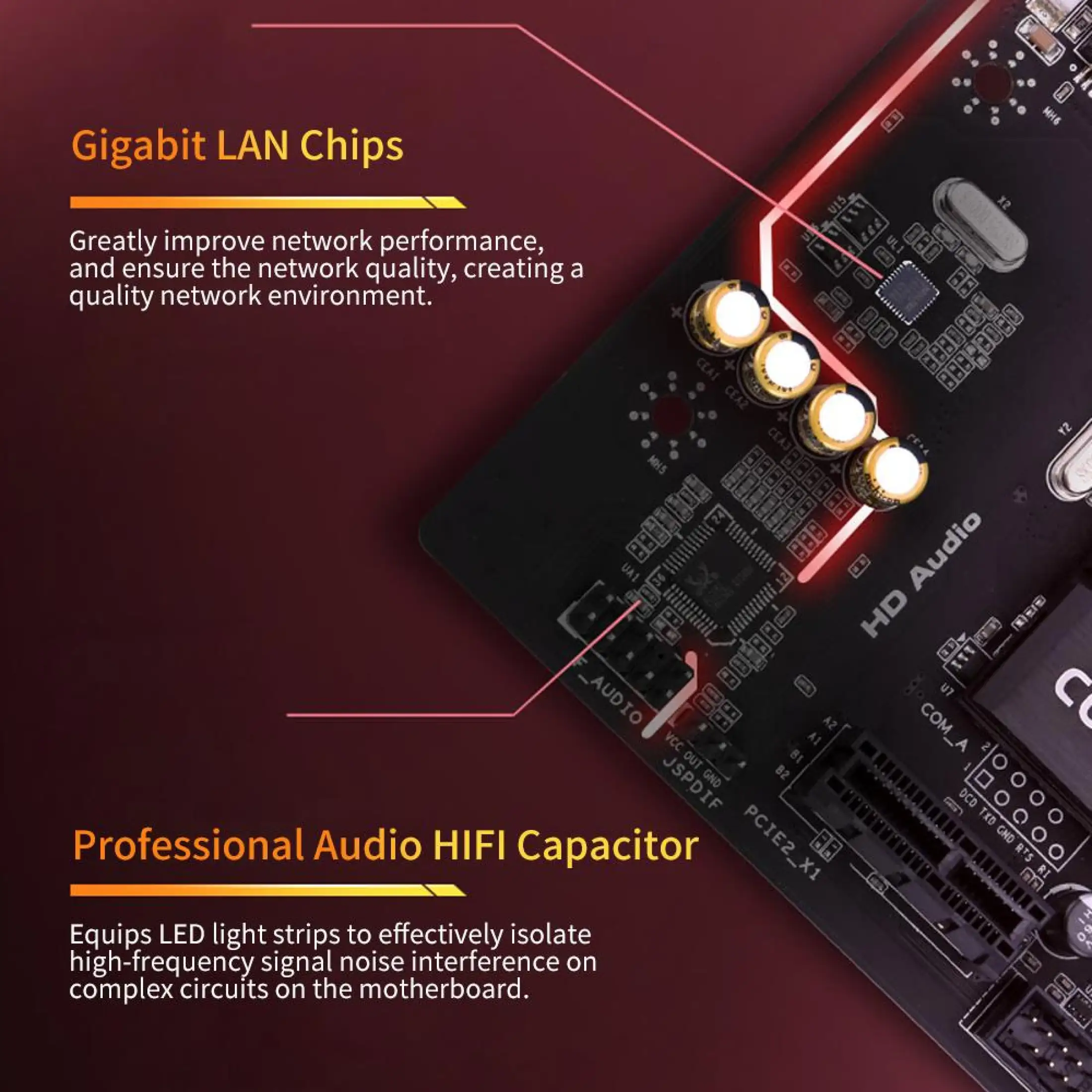

Gigabit LAN Chips.
Greatly improve network performance, and ensure the network quality, creating a quality network environment.

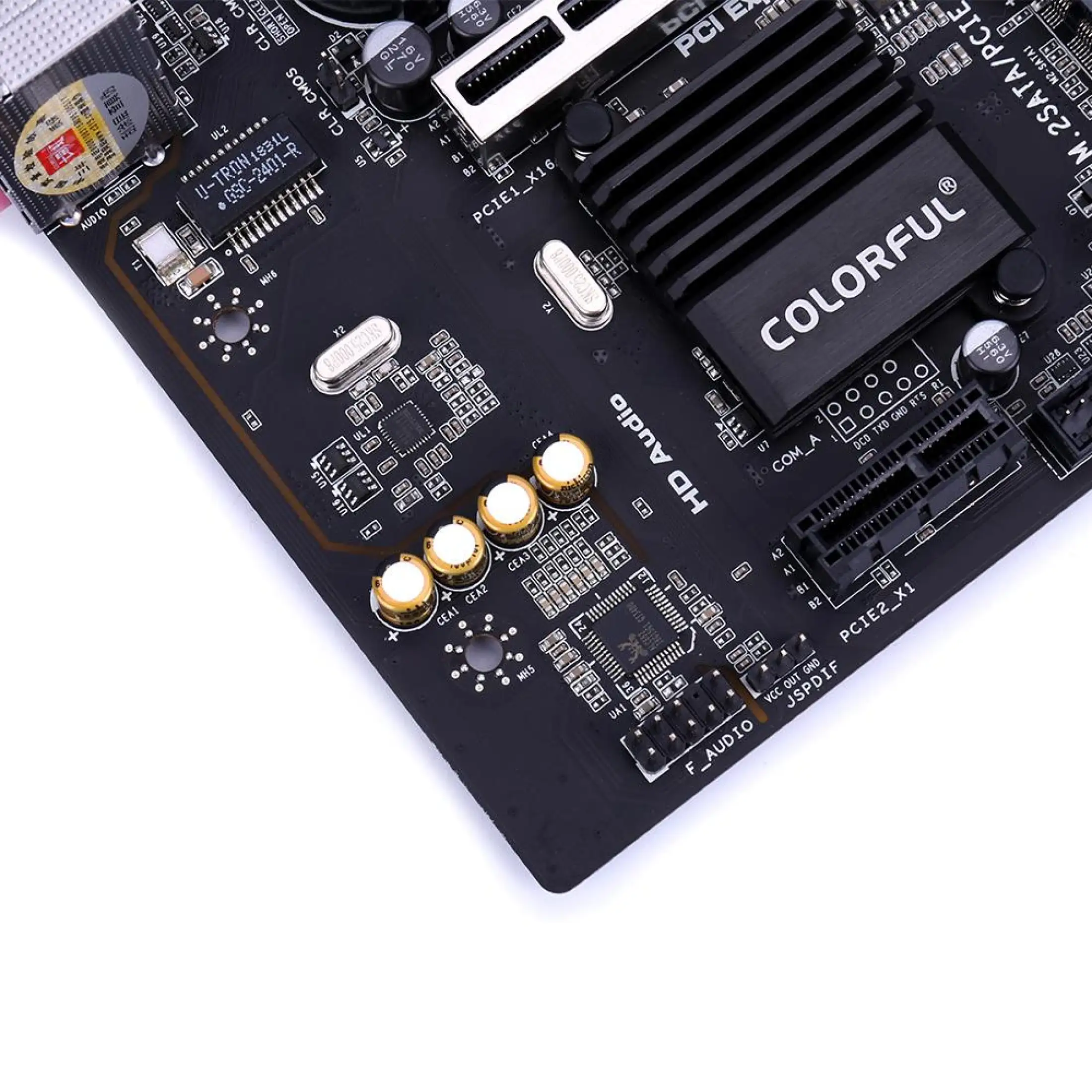

Professional Audio HIFI Capacitor.
Equips LED light strips to effectively isolate high-frequency signal noise interference on complex circuits on the motherboard.
6X Protections.
Features six protection technologies including overload protection, I/O OVP, anti-static, moisture-resistance, lightning protection, high temperature resistance, to ensure more stable running of the product and PCB atomization process has been upgraded.
Quick and Lag Reduced.
RTL8111H 1000M network card chipset delivers super fast network responsiveness, for game, office and downloading use.
Advanced Power Management
Supports S3, S4, S5 wake-up, PS2 mouse/keyboard boots, phone call startup, timing boot, network S5 wake-up.

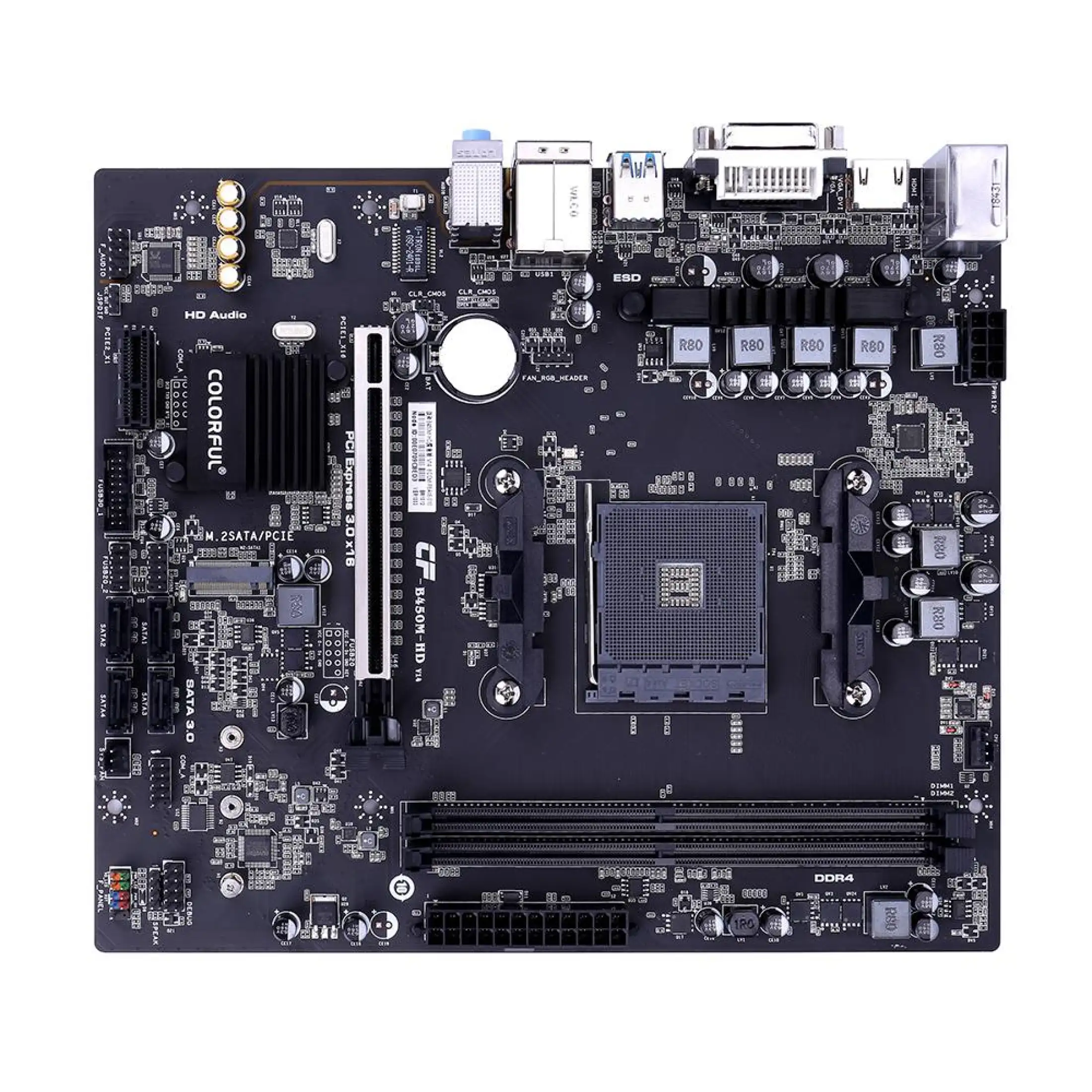

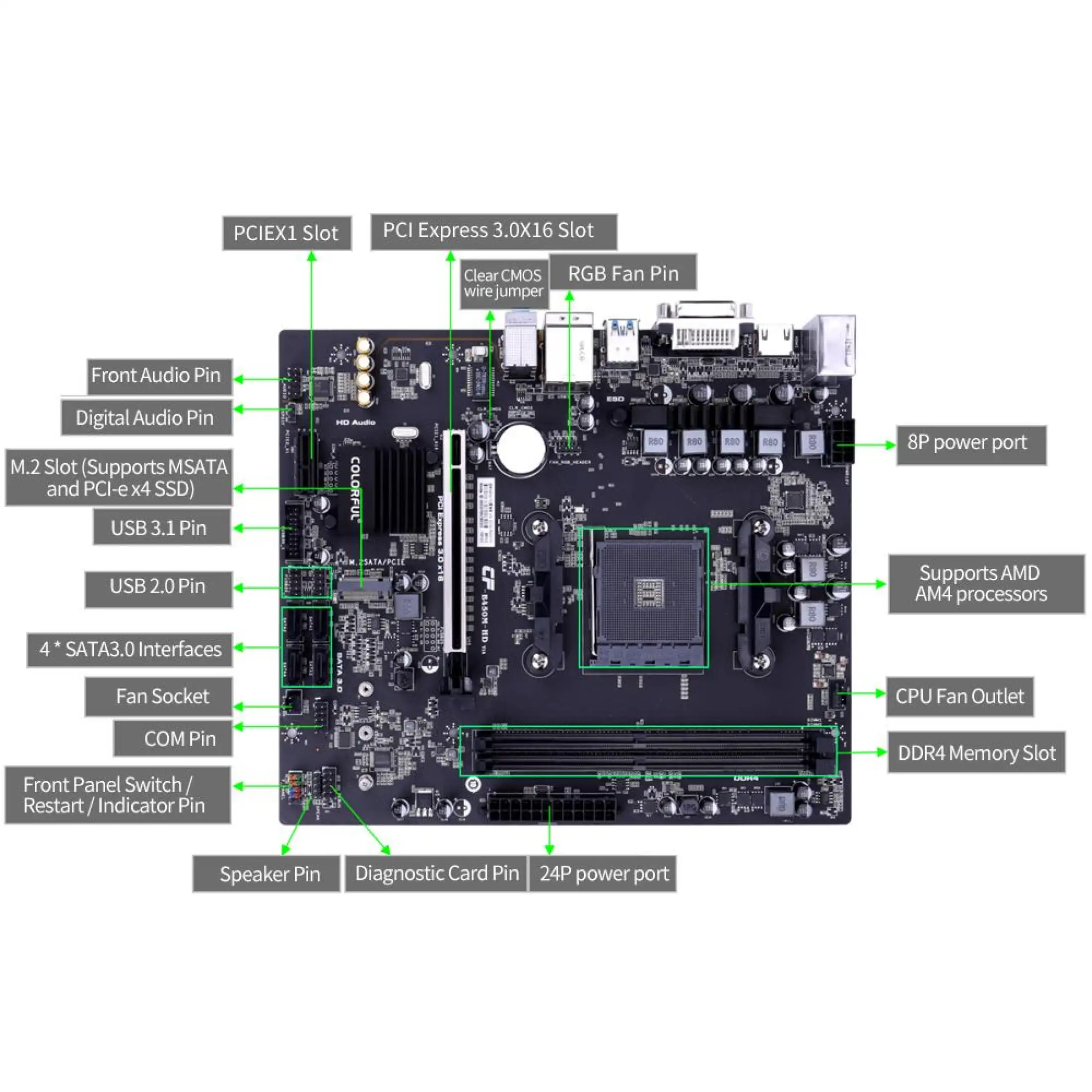

Specification:

Item: Motherboard
Brand: Colorful
Model: BATTLE-AX B450M-HD V14
Chipset: AMD B450
Processor: supports AMD AM4 processors (TDP:95W)

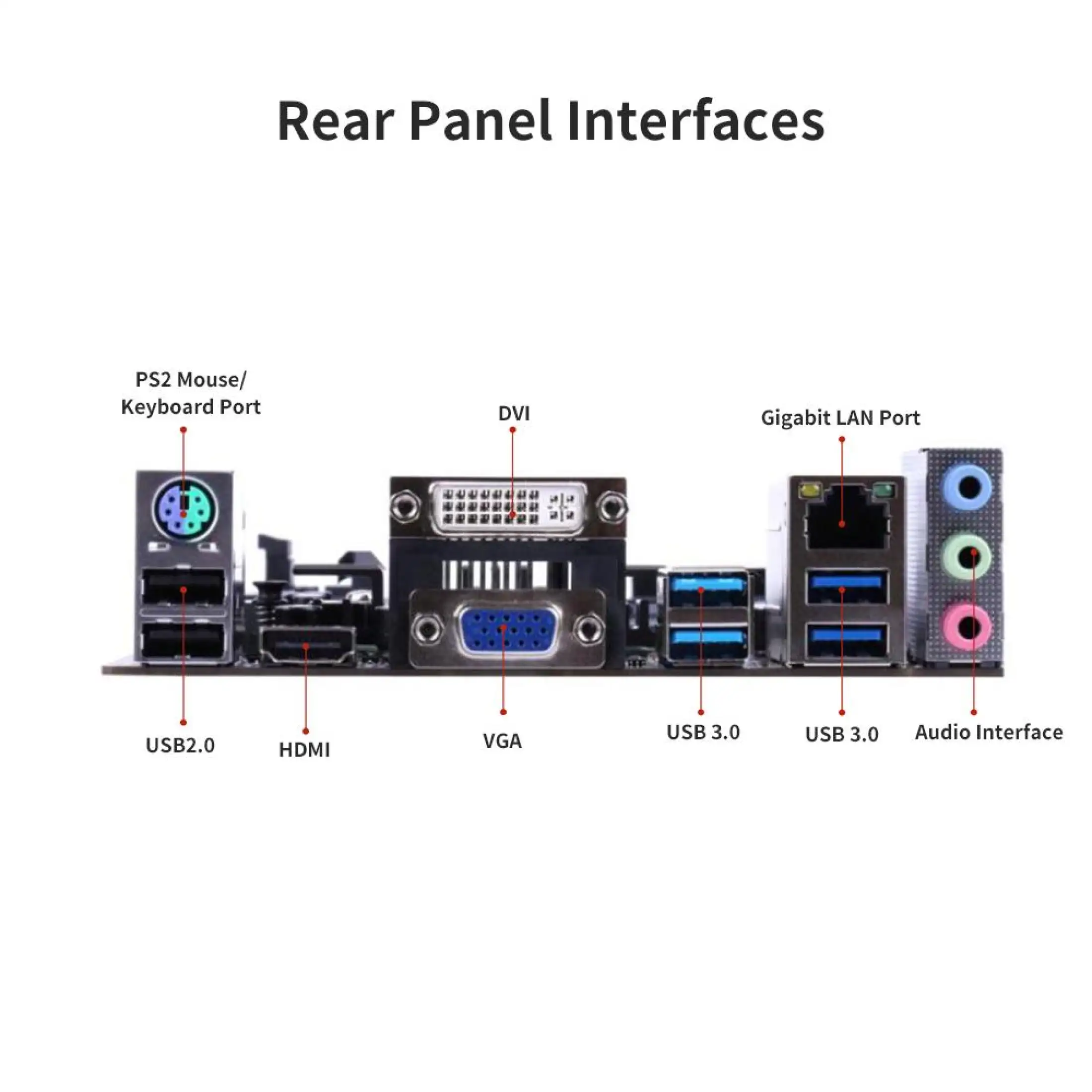

Onboard Display Port: VGA+DVI+HDMI
Hard Disk Interface: 4 * SATA3.0 6Gb/s (Supports RAID0, 1, 10)
Memory Slot: 2 * Memory Slots, supports up to 32GB, and supports dual-channel DDR4 3200 (OC)/3000(OC)/2800 (OC)/2666/2400/2133MHZ
Expansion Slots:
1 * PCI Express 3.0×16 slot
1 * PCI Express 3.0×1 slot
1 * M.2 slot (Supports MSATA and PCI-e x4 SSD)
USB Ports:
6 * USB 2.0 (2 Rear & 4 Front)
4 * USB 3.0 (4 Rear))
2 * USB3.1 (2 Front)
LAN: RTL8111H 1000M LAN chipset
Audio: ALC662 6-channel audio chipset
IO Chip: NCT5567D
BIOS: 128M UEFI, supports simplified Chinese, English, Korean
Size: 235 * 203mm / 9.3 * 8.0inches mATX
Power Management: supports S3, S4, S5 wake-up, PS2 mouse/keyboard boots, phone call startup, timing boot, network S5 wake-up.

Package Include:

1 * Motherboard
2 * SATA Cables
1 * Driver CD
1 * I/O Shield
1 * User Manual

Specifications of Colorful BATTLE-AX B450M-HD V14 Gaming Motherboard Mainboard Systemboard Multi-Protection AMD B450/Socket AM4 Processor SATA 3.0 6Gb/s USB 3.1 M.2

  • Brand
    COLORFUL
  • SKU
    384906159_PH-878600678
  • Warranty Type
    No Warranty
  • Model
    Arealer-LAL4650MY-C8995

What’s in the box

Package Include: 1 * Motherboard 2 * SATA Cables 1 * Driver CD 1 * I/O Shield 1 * User Manual
